HC PF – PZ – Mini Check Valve – 350BAR

Expansion CheckValve.

100% tested – max leak 15cc/min.

Standard material AISI303, other materias on request.

Reliable and accurate in high frequency applications.

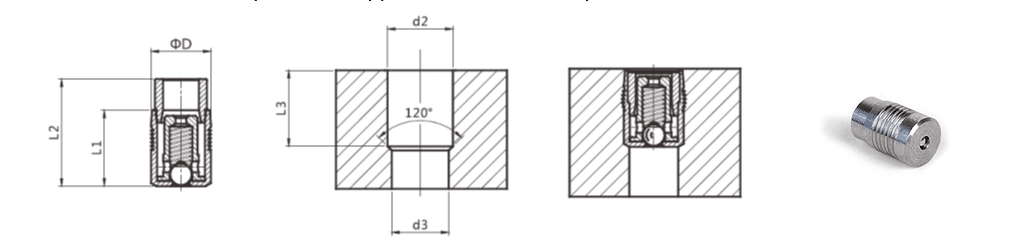

COD.	Name	Pressure	D 0/-0.05	L1	L2	L3	D2 +0.1/-0	D3
PL530101M-000	PF5.5	0Kpa	5.5	7	10	7.5	5.5	4.7
PL530101M-014	PF5.5	14±5KPa	5.5	7	10	7.5	5.5	4.7
PL530101M-040	PF5.5	40±30KPa	5.5	7	10	7.5	5.5	4.7
PL530101M-100	PF5.5	100±30Kpa	5.5	7	10	7.5	5.5	4.7
PL530102M-000	PF8.0	0Kpa	8	10	14.3	10.5	8	7.2
PL530102M-014	PF8.0	14±5KPa	8	10	14.3	10.5	8	7.2
PL530102M-040	PF8.0	40±30KPa	8	10	14.3	10.5	8	7.2
PL530102M-100	PF8.0	100±30Kpa	8	10	14.3	10.5	8	7.2
PL530103M-000	PF10	0Kpa	10	14	20	14.5	10	8.0
PL530103M-014	PF10	14±5KPa	10	14	20	14.5	10	8.0
PL530103M-040	PF10	40±30KPa	10	14	20	14.5	10	8.0
PL530103M-100	PF10	100±30Kpa	10	14	20	14.5	10	8.0

XXX: opening pressure ie 050=0.50Bar
Standard pressures 0-0.14-0.4-1.0Bar, others on demand
Body: AISI303 – Sphere: AISI440C, Other materials on demand
Special configurations on demand
Available with filter


COD.	Name	Pressure	D 0/-0.05	L1	L2	L3	D2 +0.1/-0	D3
PL430101M-000	PZ5.5	0Kpa	5.5	5.5	7.5	6	5.5	4.7
PL430101M-014	PZ5.5	14±5KPa	5.5	5.5	7.5	6	5.5	4.7
PL430101M-040	PZ5.5	40±30KPa	5.5	5.5	7.5	6	5.5	4.7
PL430101M-100	PZ5.5	100±30Kpa	5.5	5.5	7.5	6	5.5	4.7
PL430102M-000	PZ8.0	0Kpa	8	10	14.3	10.5	8	7.2
PL430102M-014	PZ8.0	14±5KPa	8	10	14.3	10.5	8	7.2
PL430102M-040	PZ8.0	40±30KPa	8	10	14.3	10.5	8	7.2
PL430102M-100	PZ8.0	100±30Kpa	8	10	14.3	10.5	8	7.2
PL430103M-000	PZ10	0Kpa	10	14	20	14.5	10	8.0
PL430103M-014	PZ10	14±5KPa	10	14	20	14.5	10	8.0
PL430103M-040	PZ10	40±30KPa	10	14	20	14.5	10	8.0
PL430103M-100	PZ10	100±30Kpa	10	14	20	14.5	10	8.0

XXX: opening pressure ie 050=0.50Bar
Standard pressures 0-0.14-0.4-1.0Bar, others on demand
Body: AISI303 – Sphere: AISI440C, Other materials on demand
Special configurations on demand
Available with filter
