CVP – SHV – Mini Check Valve

CVP – Mini Check Valve – 350Bar

Expansion CheckValve.

100% tested – max leak 15cc/min.

Standard material AISI303, other materias on request.

Reliable and accurate in high frequency applications.

HC CVP – SHV – Mini Check Valve – 350Bar


COD.	Name	Pressure	D	L1	D2 +/-0.04
	CVP5.5	0KPa	2.54
CV5505-000	CVP5.5	0KPa	5.46	7.3	5.32
CV5505-014	CVP5.5	14±5KPa	5.46	7.3	5.32
CV5505-040	CVP5.5	40±30KPa	5.46	7.3	5.32
CV5505-100	CVP5.5	100±30Kpa	5.46	7.3	5.32
CV5508-000	CVP8.0	0KPa	7.92	10.1	7.78
CV5508-014	CVP8.0	14±5KPa	7.92	10.1	7.78
CV5508-040	CVP8.0	40±30KPa	7.92	10.1	7.78
CV5508-100	CVP8.0	100±30Kpa	7.92	10.1	7.78

XXX: opening pressure ie 050=0.50Bar
Standard pressures 0-0.14-0.4-1.0Bar, others on demand
Body: AISI303 – Sphere: AISI440C or Ceramic, Other materials on demand
Special configurations on demand
Available with filter

HC SHV – Mini Shuttle Valve

Standard material AISI303, other materias on request.

Reliable and accurate in high frequency applications.

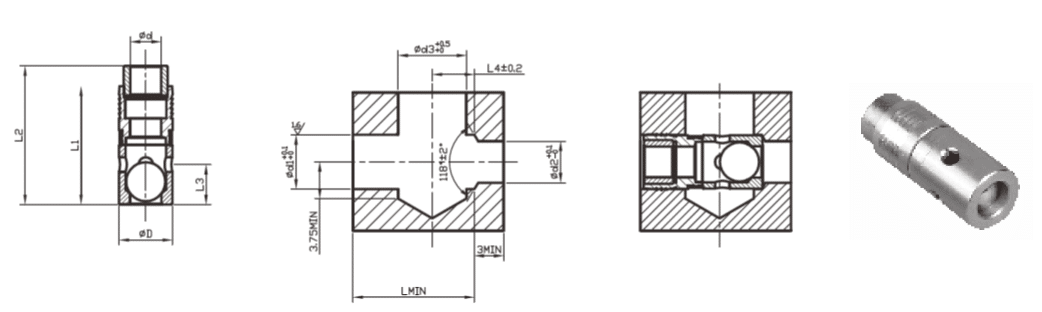

COD.	Name	D	L1	L2	L3	d	d1	d2	d3	L	L4
SHV100101	SHV5.5	5.46	12.2	14.5	4.1	3.15	5.55	4.25	7	12.4	4.3
