RT RP – Restrictors Flow Limiters

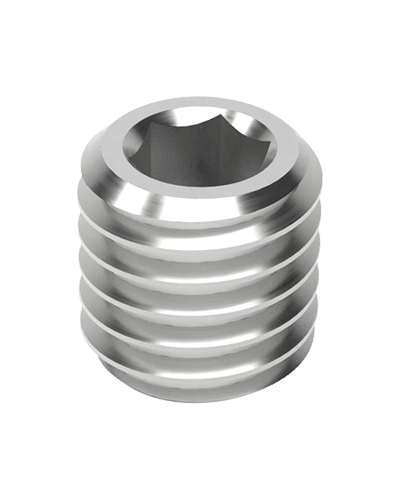

RT/RP Threaded flow restrictors limiters

Metric, UN, NPTF or on request threads.
The standard material is stainless steel AISI303 or copper – The diameter of the passage is on customer request.
Threaded models can be easily replaced to adjust flow to customer calibration needs.
Special models available on request.

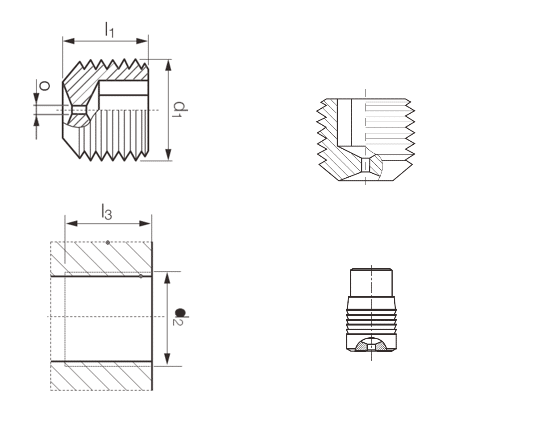

COD.	Thread	Hole +/-0.025mm	D1	L1	D2	L3	HEX
HCRT-040-XXX	M4	0.5-0.90	4	4	M4	4	2
HCRT-050-XXX	M5	0.50-1.40	5	5	M5	5	2.5
HCRT-060-XXX	M6	0.50-1.90	6	6	M6	6	3
HCRT-080-XXX	M8	0.50-2.90	8	8	M8	8	4
HCRT-100-XXX	M10	0.50-3.95	10	10	M10	10	5
HCRT-120-XXX	M12	0.50-4.95	12	12	M12	12	6

XXX: calibrated hole diameter e.g. 127=1.27mm


COD.	Thread	Hole +/-0.001"	D1	L1	D2	L3	HEX
HCRT-164-XXX	8-32	.020-.035	0.164	0.188	8-32	0.188	5/64
HCRT-190-XXX	10-32	.020-.050	0.190	0.188	10-32	0.188	3/32
HCRT-250-XXX	1/4-28	.020-.085	0.250	0.250	1/4-28	0.250	1/8
HCRT-312-XXX	5/16-24	.020-.115	0.312	0.313	5/16-24	0.313	5/32
HCRT-375-XXX	3/8-24	.020-.145	0.375	0.375	7/16-20	0.375	3/16
HCRT-437-XXX	7/8-20	.020-.175	0.437	0.375	1/2-20	0.375	7/32
HCRT-500-XXX	1/2-20	.020-.210	0.500	0.500		0.500	1/4

XXX: calibrated hole diameter e.g. 050= 0.050


COD.	Thread	Hole +/-0.001"	D1	L1	D2	L3	HEX
HCRP-062-XXX	1/16-27 NPTF	.020–.115	0.312	0.300	1/16–27 NPTF	0.300	5/32
HCRP-125-XXX	1/8-27 NPTF	.020–.145	0.405	0.300	1/8–27 NPTF	0.300	3/16
HCRP-250-XXX	1/4-18 NPTF	.020–.210	0.540	0.460	1/4–18 NPTF	0.460	1/4
HCRP-375-XXX	3/8-18 NPTF	.020–.270	0.675	0.406	3/8– 18 NPTF	0.406	5/16

XXX: calibrated hole diameter e.g. 050= 0.050
