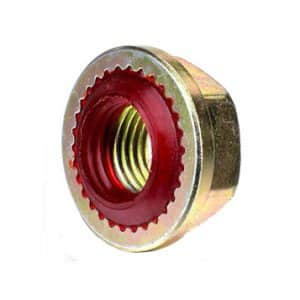

Sealing Locking Nuts

CHARACTERISTICS

Sealing Locking Nuts
Flanged Nuts class 8 (28-32Hrc)
Treatment: Galvanization or Phosphating
Seal ring Oil resistant PA11 nylon
Temperature -40°C / +120°C
Ring installed with Injection Molding
Unique sealed ring nut body assembly
Sealing ring with thread imprint
Reusable up to more than 5 cycles
Holding pressure 25Mpa and above

Thread
M		Cod.
Galvanized		Cod.
Phosphated		Cod.

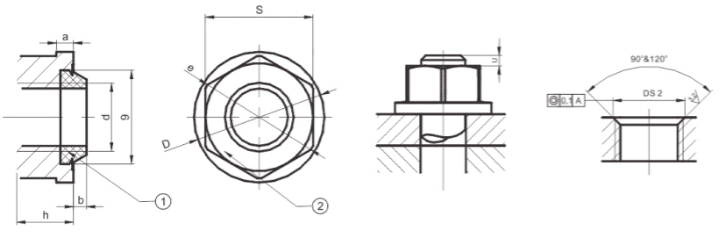

AISI316		D
mm		S
mm		H
mm		Tightening
Nm
M4x0.7--SLN-M4X0.7-3161086
M5x0.8--SLN-M5X0.8-31611975 - 6
M6x0.5SLN-M6X0.5SLN-M6X0.5-PHSLN-M6X0.5-3161210710.1 - 11.1
M6x1SLN-M6X1SLN-M6X1-PHSLN-M6X1-316121079.0 - 10.1
M8x1SLN-M8X1SLN-M8X1-PHSLN-M8X1-31617138.522.8 - 26.5
M8x1.25SLN-M8X1.25SLN-M8X1.25-PHSLN-M8X1.25-31617138.521.6 – 24.6
M10x1SLN-M10X1SLN-M10X1-PHSLN-M10X1-3162117946 – 53
M10X1.5SLN-M10X1.5SLN-M10X1.5-PHSLN-M10X1.5-3162117946 – 48
M12X1SLN-M12X1SLN-M12X1-PHSLN-M12X1-31623191082 – 94
M12X1.25SLN-M12X1.25SLN-M12X1.25-PHSLN-M12X1.25-31623191078 – 91
M12X1.5SLN-M12X1.5SLN-M12X1.5-PHSLN-M12X1.5-31623191078 – 90
M12x1.75SLN-M12X1.75SLN-M12X1.75-PHSLN-M12X1.75-31623191073 – 84
M14x1.5SLN-M14X1.5SLN-M14X1.5-PHSLN-M14X1.5-316272211124 – 142
M16x1.5SLN-M16X1.5SLN-M16X1.5-PHSLN-M16X1.5-316373018189 – 218
M16x2SLN-M16X2SLN-M16X2-PHSLN-M16X2-316373018189 - 218

AISI 316 Marine, Food, Medical, Defense Sector. Specials available on request

Measurements, images and technical data are purely indicative, we reserve the right to make changes at any time and without notice.
